Display(顯示方式)

According the 4-20 mA input signal, user can preset the desire display value between -
1999 to 9999 (decimal point can select to DP1 , DP2 , DP3).Until set the display value,
all the data will save into the memory circuit permanently

Output(輸出方式)

Relay contact output :5A/240 VAC(resistive load)
Control output : 3 points , NCAlarm output : 2 points

Control Modes(控制方式)

ON/OFF Control :Hysteresis or Proportional control (band 5%)
* Cooling action or heating action can be selected.chern.

Alarm Modes(警報方式)

Deviation high alarm, Deviation low alarm.
PV high alarm, PV low alarm.

Sample Time(取樣時間)

2 times/second.

Display Offset Adj(抵補調整)

Can make the adjustment

Default

Without advice previously, the function of CT-2002-MA will Preset Display value to
4 mA=0 , 20mA=9999.The Control Model will set to ON/OFF Control,heating action.
The Alarm Modes will set to Deviation high alarm.

Power Supply(工作電源)

90 ACV - 264 ACV, 50/60Hz

Power Consumption(消耗功率)

Less than 3 VA

Temperature(工作溫度)

0 to 50℃32 - 122℉

Humidity(工作濕度)

Less than 85 % RH (Non condensed).

Dimension(外觀尺寸)

Case:96× 48 ×80 mm.
Panel cut size :92mm × 45mm

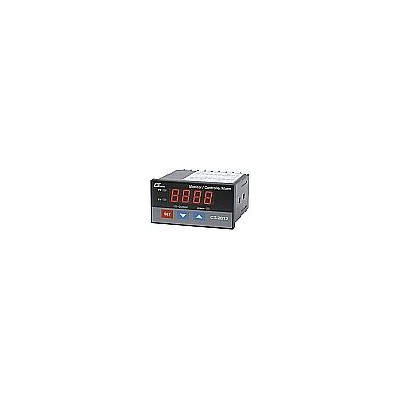

CT-2002-MA

適用LUTRON的產品系列

The CT-2002-MA can cooperate all the LUTRON transmitters then whole System will be become the useful Controller/Alarm/Indicator for following measuring function: taih.

Humidity , Light , PH , Dissolved Oxygen , Conductivity , Vibration Pressure
Sound , Temperature , RPM , Hz , Load cell (Weight,Force) , Potential (Angle ,
Level) , ACV , ACA , DCV , DCA , WATT , VAR , Power Factor
